Volume Chambers
>
CVL012

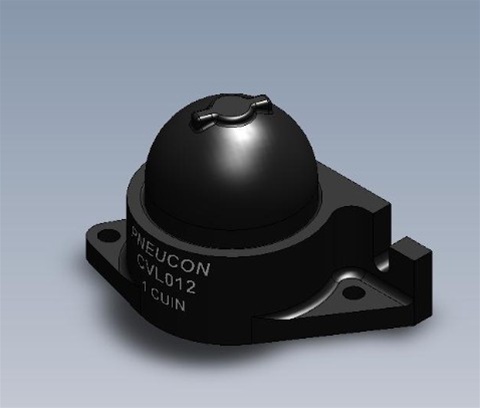

Volume Chamber (accumulator); 1 cubic inch; Dual 10-32 ports

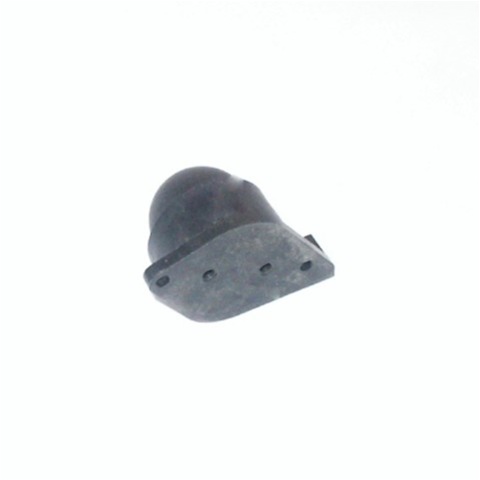

Alternative Views:
Same day shipping for this item!
List Price
$
9.99
Quantity in Stock:12
Product Code:
CCVL01
Metric port threads
M5 Threads [Add $2.85]
Qty:
Description
Specifications
Volume Chamber (accumulator); 1 cubic inch; Dual 10-32 ports; 30% glass filled Noryl
®
composite
Model - CVL012

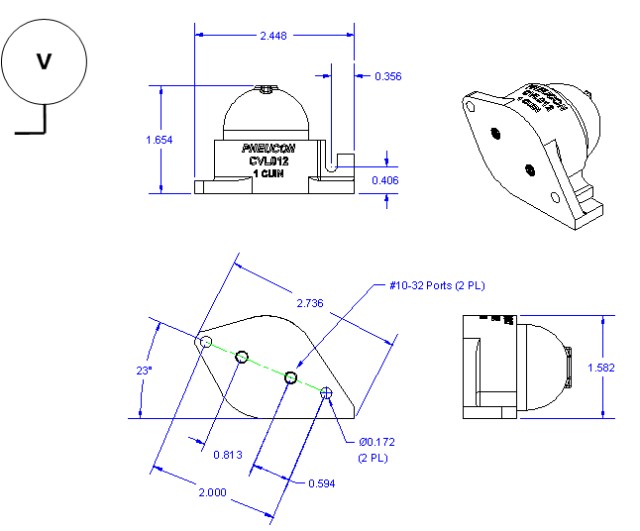

Technical Data
Connection
10-32 UNF Ports
Lubrication
None required
Medium
Compressed air; inert gasses
Operating Pressure
Vacuum to 125 PSIG (8.8)
Temperature
-35 F (-37) to 150 (66)
Weight
1.1 oz. (46.6g)
Materials
Valve body
30% Glass filled Noryl
®
Resin
Operation
Pressurize / Vent
Model - CVL012
DESCRIPTION

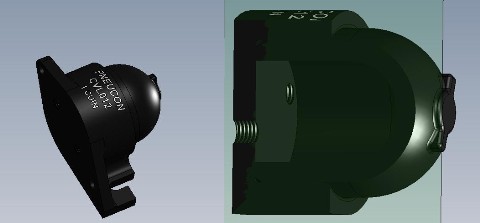

Model - CVL012
Features
Mounting
Versatile design allows for panel or manifold mount options
Noryl
®
Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Ports
10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Options
Ports
M5 port threads
