C3252S11B

1 pilot A; 1 pilot B, spring return, Buna N seals

Alternative Views:

Same day shipping for this item!

List Price $86.56

Package includes> Mounting Brackets and Hardware

Quantity in Stock:10

Product Code: CD131

Metric port threads

M5 Threads [Add $2.85]

Qty:

Description

Specifications

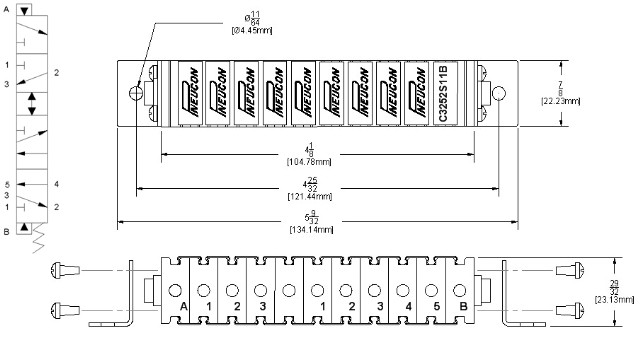

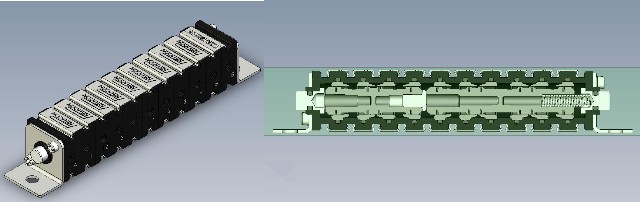

3D Viewer/CAD

3/2 x 5/2 Multi-valve; Spring return; 1 pilot A; 1 pilot B; Balanced spool design; 10-32 ports; 30% glass filled Noryl^® composite; Stainless Steel Spring clips; Color Coded manual override buttons.

DESCRIPTION

Model - C3252S11B

Features
Seals	Patented Tadpole low friction seals
Spool	Balanced rapid response .062 travel
Spool Fingers	Provides low friction high flow captive seal technology
Noryl^® Resin	Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity	100 million cycles
Ports	10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override	Color coded anodized manual override buttons
Options
Override	Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush
Ports	M5 port threads
