C52X3D11B

Home > Valves > Directional Valves > Multi-Valves >

C52X3D11B

1 pilot A; 1 pilot B, detent action, Buna N seals

Alternative Views:

Same day shipping for this item!

List Price $124.30

Package includes> Mounting Brackets and Hardware

Quantity in Stock:14

Product Code: CD145

Metric port threads

M5 Threads [Add $2.85]

Qty:

Description

Specifications

3D Viewer/CAD

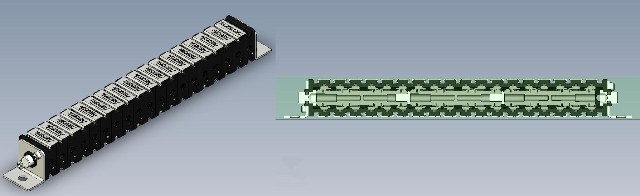

5/2 x 5/2 x 5/2 Multi-valve; Detent action; 1 pilot A; 1 pilot B; Balanced spool design; 10-32 ports; 30% glass filled Noryl^® composite; Stainless Steel Spring clips; Color Coded manual override buttons.

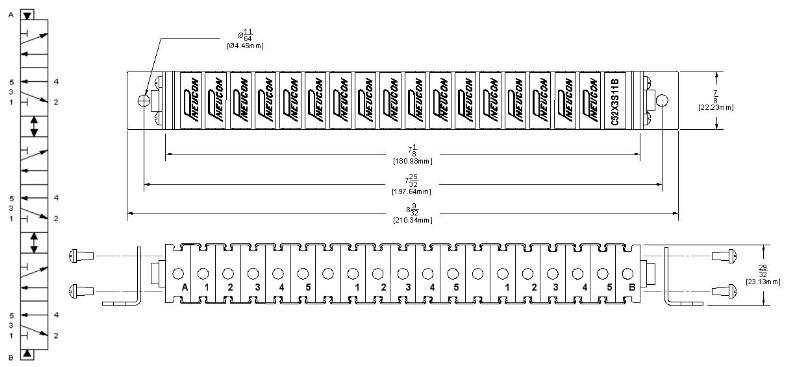

Model - C52X3D11B

Technical Data
Connection	10-32 UNF Ports
Filtration	25 Micron
Flow	7.8 CFM @ 60 PSI (4.2) Cv .11
Lubrication	None required
Medium	Compressed air; inert gasses
Operating Pressure	Vacuum to 125 PSIG (8.8)
Pilot Pressure	15 PSI (1.03)
Shift Force	6.0 lbs. (2.72 kg)
Temperature	-35 F (-37) to 150 (66)
Weight	.096 oz. (2.7g)

Materials
Manual override buttons	Anodized Aluminum
Mounting Brackets	Stainless Steel
Seals	Buna N
Spool	Glass filled Noryl^® Resin
Spring Clips	Stainless Steel
Valve body	Glass filled Noryl^® Resin

Operation
Pressure at Pilot A	Ports 1 and 2, 3 and 4 x Ports 1 and 2, 3 and 4 x Ports 1 and 2, 3 and 4 connected
Pressure at Pilot B	Ports 3 and 2, 4 and 5 x Ports 3 and 2, 4 and 5 x Ports 3 and 2, 4 and 5 connected

Model - C52X3D11B

DESCRIPTION

Model - C52X3D11B

Features
Seals	Patented Tadpole low friction seals
Spool	Balanced rapid response .062 travel
Spool Fingers	Provides low friction high flow captive seal technology
Noryl^® Resin	Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity	100 million cycles
Ports	10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override	Color coded anodized manual override buttons
Options
Override	Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush
Ports	M5 port threads
