C32FI11B-NO

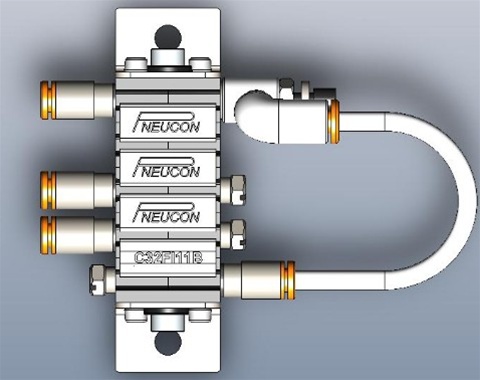

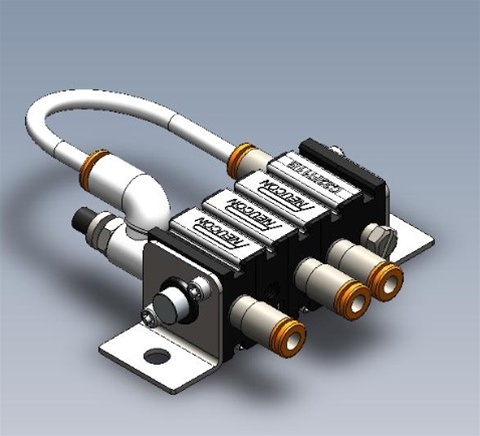

3/2 way N.O. impulse valve with separate pilot and supply lines; when pilot is applied the output is vented for an adjustable time, then comes back on; spring return; Buna N seals

Alternative Views:

Same day shipping for this item!

List Price $109.11

Package includes> Brackets, Fittings, Flow Control and Tubing

Quantity in Stock:16

Product Code: CDI18

End button style

Stainless Steel, Standard [Add $3.35]

Metric port threads

M5 Threads [Add $2.85]

Qty:

Description

Specifications

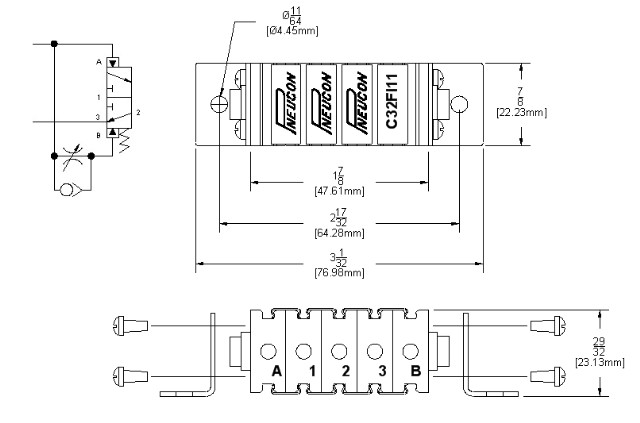

3/2 way N.O. impulse valve with separate pilot and supply lines; when pilot is applied the output is vented for an adjustable time, then comes back on; Balanced spool design; Spring return; 10-32 ports; 30% glass filled Noryl^® composite; Stainless Steel Spring clips; Color Coded manual override buttons.
Arrives pre-plumbed for N.O. operation. May be piped for N.C. operation

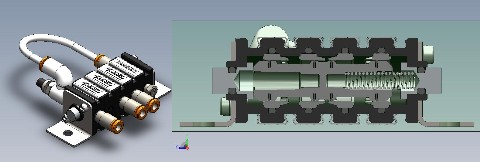

DESCRIPTION

Model - C32FI11B-NO

Features
Seals	Patented Tadpole low friction seals
Adjustable flow control	Adjustable impulse (one shot) outputs Adjusts the time the output is "Off" vented
Spool	Balanced rapid response .062 travel
Spool Fingers	Provides low friction high flow captive seal technology
Noryl^® Resin	Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity	100 million cycles
Ports	10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override	Color coded anodized manual override buttons
Timing	Longer times are easily adjusted by adding longer loop tubes after the flow control. For extra long output times you may remove the plug from the "B" pilot and add volume chambers
Options
Override	Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush
Ports	M5 port threads
