Technical Data
Connection	10-32 Ports
Filtration	25 Micron
Lubrication	None required
Medium	Compressed air; inert gasses
Operating Pressure	30 to 85 PSIG (2 - 6 bar) oil free
Timing Range	(2 - 99999) minutes
Accuracy	+/- .5 of set point
Reset	Manual or pneumatic signal. Pneumatic signal min pulse time (180ms). Max reset frequency 1 per 2 minutes
Temperature	32 F (0) to 140 (60)
Weight	7.5 ounces. (212g)

Materials
Casing, Body and Cover	Plastic
Mounting Screws	Stainless Steel
Seals	Chloroprene
Ports	Brass

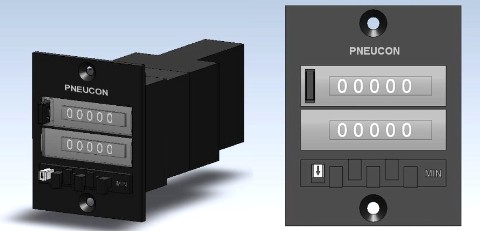

Timing operation.
To set timer, depress white arrow button down while adjusting digits on bottom window
To start timing apply air to port X. At the completion of the timing an output will exit Port A.
Port A will continue the output until reset. Reset can be accomplished manually by depressing  the reset button
 on the timer face or by applying a pneumatic signal to port Y.
Once reset has completed, venting signal Y will again start timing if
X signal is still present.
