CLV5A21

Home > Valves > Limit Valves > Large CLV5 Series > Side Rotary Head >

CLV5A21

Side operating head, Steel roller lever, adjustable back mount, spring return

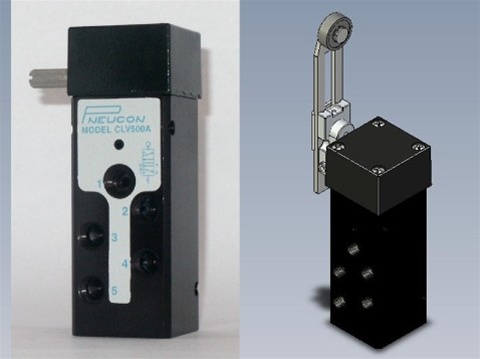

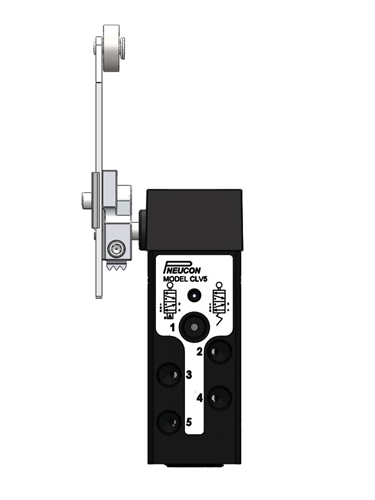

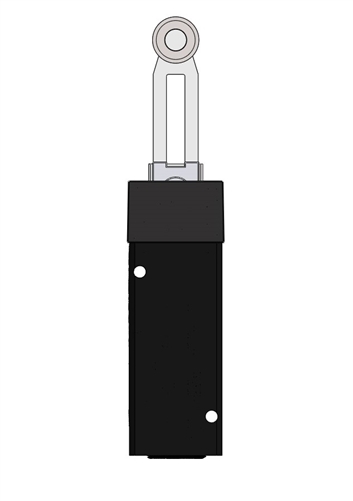

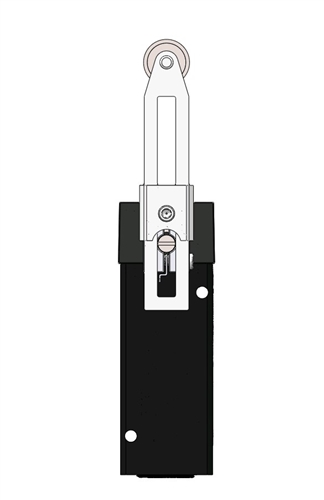

Alternative Views:

Same day shipping for this item!

List Price $469.16

Quantity in Stock:6

Product Code: CL022

Pilots

Air Pilot Return:

Air Return [Add $5.85]

Seals

Seal type:

Viton [Add $5.00]

Qty:

Description

Specifications

3D Viewer/CAD

5/2 way valve; Side Rotary Operating Head with steel roller lever, adjustable back mount, Spring Return; 1/8 NPT ports; 2011 -T3 Aluminum Black Anodized to (MIL-A-8625 Type II). Stainless Steel Spring.

Model - CLV5A21

Technical Data
Connection	1/8 NPT Ports
Filtration	25 Micron
Flow	8.0 CFM @ 60 PSI (4.2) Cv .12
Lubrication	None required
Medium	Compressed air; inert gasses
Operating Pressure	Vacuum to 175 PSIG (12.1)
Operating Force	2.26 pounds (1020.6) (head with no lever)
Return Pilot Pressure	20 PSI (1.4) (Optional)
Temperature	-35 F (-37) to 150 F (66)
Weight	1 lb (454g)

Materials
Operating Head	Zinc, phosphate treated and epoxy finished. Front and rear oil impregnated sintered bronze bearings, stainless steel operating shaft.
Plunger	303 Stainless Steel
Lever	303 Stainless Steel body / Steel Roller
Seals	Buna N (Standard), Viton (Optional)
Spool	30 % Glass filled Noryl^® Resin
Return Spring	Stainless Steel
Valve body	2011T3 Aluminum bar stock black anodized to (MIL-A-8625 Type II)

Operation
At rest condition (Spring Return)	Ports 3 and 2; 4 and 5 connected
Operating Head activated	Ports 3 and 4; 1 and 2 connected
Air Pilot return signal (B)	Ports 3 and 2; 4 and 5 connected

Spring return

Air return (optional)

Model - CLV5A20

Model - CLV5A21

DESCRIPTION

Model - CLV5A20

Model - CLV5A21

Features
Seals	Patented Tadpole low friction seals
Spool	Balanced rapid response .062 travel
Spool Fingers	Provides low friction high flow captive seal technology
Body	1.5" 2011T3 Aluminum bar stock black anodized to (MIL-A-8625 Type II) Anodized for offshore applications.
Longevity	100 million cycles
Ports	Fully ported 1/8 NPT
Operating Head	Rugged corrosion resistant zinc, phosphate treated and epoxy finished. Front and rear oil impregnated sintered bronze bearings on stainless steel operating shaft. Internal cam is easily changed for left, right or two way action
