CLV5B40

Home > Valves > Limit Valves > Large CLV5 Series > Top Rotary Head >

CLV5B40

Top operating head, Nylatron Flex Loop, spring return

Alternative Views:

Same day shipping for this item!

List Price $590.56

Product Code: CLB41

Pilots

Air Pilot Return:

Air Return [Add $5.85]

Seals

Seal type:

Viton [Add $5.00]

Qty:

Description

Specifications

3D Viewer/CAD

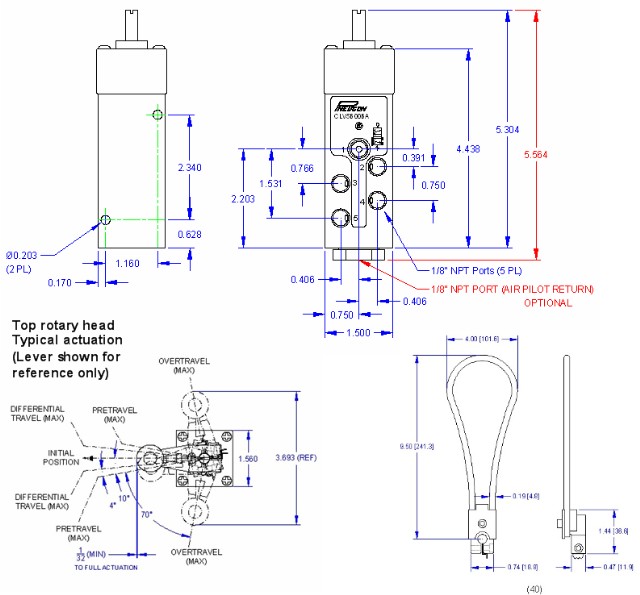

5/2 way valve; Top Rotary Operating Head with Nylatron Flex Loop lever, Spring Return; 1/8 NPT ports; 2011 -T3 Aluminum Black Anodized to (MIL-A-8625 Type II). Stainless Steel Spring.

DESCRIPTION

Model - CLV5B40

Features
Seals	Patented Tadpole low friction seals
Spool	Balanced rapid response .062 travel
Spool Fingers	Provides low friction high flow captive seal technology
Body	1.5" 2011T3 Aluminum bar stock black anodized to (MIL-A-8625 Type II) Anodized for offshore applications.
Longevity	100 million cycles
Ports	Fully ported 1/8 NPT
Operating Head	Rugged corrosion resistant zinc, phosphate treated and epoxy finished. Front and rear oil impregnated sintered bronze bearings on stainless steel operating shaft. Internal cam is easily changed for left, right or two way action
