Valves
>
Needle Valves
>
CNV4

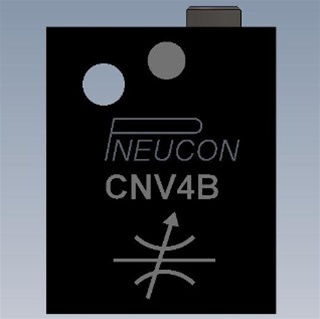

Inline needle valve, Buna N seal
Alternative Views:
Same day shipping for this item!
List Price
$
33.32
Quantity in Stock:10
Product Code:
CNV01
Metric port threads
M5 Threads [Add $2.85]
Seals
Seal type:
Viton [Add $5.00]
Qty:
Description
Specifications
Needle valve; inline; 10-32 ports; anodized aluminum.
Model - CNV4B
Technical Data
Connection
10-32 UNF Ports
Filtration
25 Micron
Flow
6 CFM @ 60 PSI (4.2) Cv .10
Lubrication
None required
Medium
Compressed air; inert gasses
Operating Pressure
Vacuum to 125 PSIG (8.8)
Temperature
-35 F (-37) to 150 (66)
Weight
.2 oz. (5.67g)
Materials
Poppet seal
Buna N
Spring
Stainless Steel
Stem
416 Stainless Steel
Valve body
Black anodize aluminum
Operation
Control flow both directions
Model - CNV4

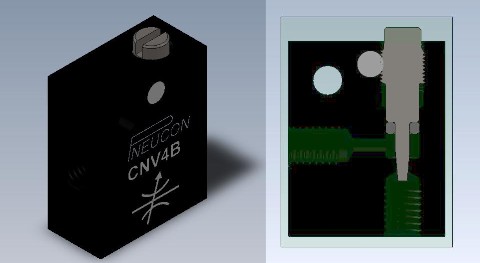

DESCRIPTION
Model - CNV4
Features
Needle
12-56 thread, 10
o
for fine adjustments
Body
Black anodized aluminum
Longevity
20 million cycles
Adjustment
Friction flat blade for precise control
Ports
10-32 female ports
Options
Ports
M5 port threads
Seals
Viton
