Needle valve; panel mount; 10-32 ports; brass
Model - CPNV2
|
Technical Data |
|
|
|
|
|
|
|
|
100 SCFM @ 80 PSI (5.51)
Cv .10 |
|
Lubrication |
None required |
|
|
Compressed air; inert gasses |
|
Operating Pressure |
150 PSIG (10.3) |
|
|
-35 F (-37) to 150 (66) |
|
Weight |
.2 oz. (5.67g) |
|
Materials |
|
Poppet seal
|
Buna N
|
| Stem | Stainless Steel
|
|
Valve body |
Brass |
|
Operation |
Controlled flow both directions
|  Model - CPNV2
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
DESCRIPTION
Model - CPNV2
|
Features |
|
Poppet |

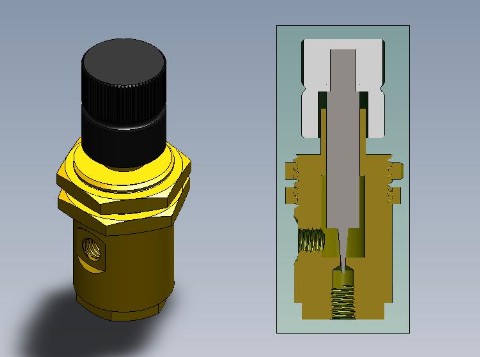

Capsule design for tight seals
|
|
Body |
Brass
|
|
Longevity |
5 million cycles |
| Adjustment | Bubble tight to full open takes 9 turns, "O" ring friction knob for secure settings
|
|
Ports |

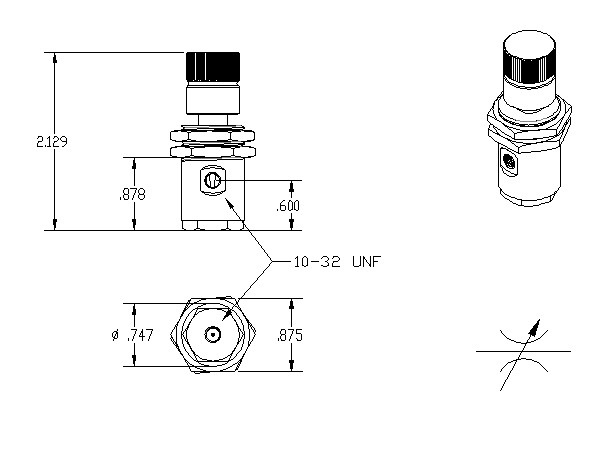

10-32 female ports
|
|
Options |
| Seals | Viton |
|
|
|
|
|
|
|
|
