Home
>
Accessories
>
Terminal Strips
>
CTS4102

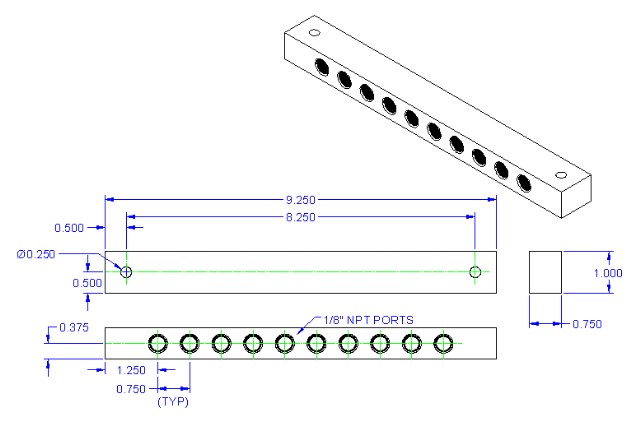

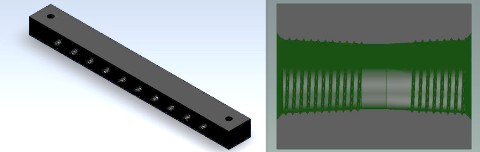

Terminal strip; 10 station; 1/8" NPT x 1/8" NPT ports; opposing sides; black anodized aluminum
Alternative Views:
Same day shipping for this item!
List Price
$
40.27
Quantity in Stock:15
Product Code:
CTS14
Qty:
Description
Specifications
Terminal strip; 10 station; 1/8" NPT x 1/8" NPT ports; opposing sides; black anodized aluminum
Model - CTS4102
Technical Data
Connection
10 stations x 2 sides, 1/8" NPT Ports
Medium
Compressed air; inert gasses, fluids
Operating Pressure
1000 PSI non shock (68.95)
Temperature
-35 F (-37) to 300 (148.9)
Weight
1.1 oz. (46.6g)
Materials
Terminal Strip
Black anodized aluminum
Operation
Pressurize / Vent
Model - CTS4102
DESCRIPTION
Model - CTS4102
Features
Mounting
Mounting holes located on each end
Spacing
Ports are spaced to accommodate the largest of fittings
Port
1/8" NPT porting on opposing sides of the terminal block
Options
Material
Brass or stainless steel
