Accessories
>
Tubing
>
Polyurethane for "Barbed" Connections
>
F009F125-Bl

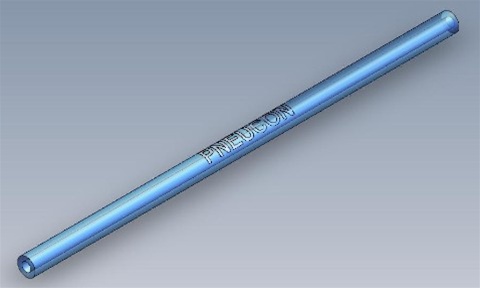

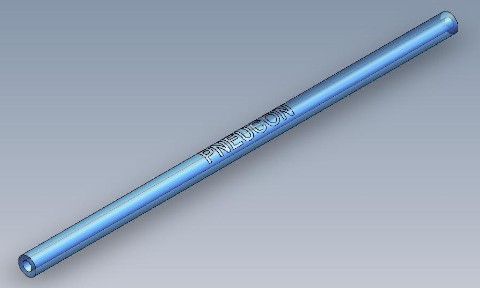

Tubing, 1/8" OD x 1/16" ID for barbed fittings; Blue translucent, UV stabilized
Same day shipping for this item!
List Price per foot
$
0.44
Quantity in Stock:466
Product Code:
CTUBB02
Qty:
Description
Specifications
3D Viewer/CAD
Tubing; Polyurethane, 85 durometer for barbed fittings; ether base; UV stabilized.
Model - F009F125-BL
Technical Data
Color
Blue translucent
Temperature Range
- 40
o
F to + 165
o
F
Vacuum Rating
28" Hg.
Working Pressure
135 PSI @ 75
o
F; (9.3 b @ 25
o
C) 3:1 Safety Factor
Diameter Tolerances
+/- .005"
Base Resin Compliance
NSF61, Meets UL94HB, USPVI
Durometer
85A
Weight
4 oz. (113.4g) / ft
Materials
Polymer
Ether-based, Polyurethane, UV stabilized
Model - F009F125-BK
Model - F009F125-BL
Model - F009F125-C
Model - F009F125-G
Model - F009F125-R
Model - F009F125-W
Model - F009F125-Y
DESCRIPTION
Model - F009F125-BL
Features
Resistance
Kink and abrasion resistance
Temperature
Suitable for temperatures ranging from -40
o
to 165
o
F
Polymer
Ether-based Polyurethane that is UV stabilized. Provides many years service in harsh outdoor conditions.
Memory
May be stretched, bent or kinked and will immediately return to it's original dimensions.
