Polyurethane for "Push In" Connections
>
F009G375-W

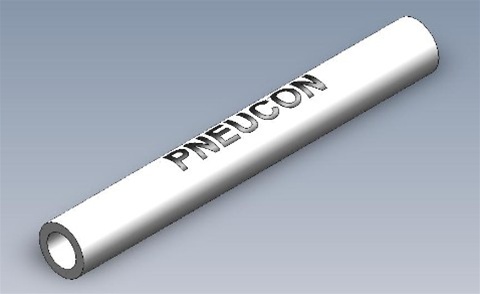

Tubing, 3/8" OD for push-in style fittings; White opaque, UV stabilized
Same day shipping for this item!
List Price per foot
$
1.04
Quantity in Stock:660
Product Code:
CTUBP34
Qty:
Description
Specifications
Tubing; Polyurethane, 95 durometer for push-in style fittings; ether base; UV stabilized.
Model - F009G375-W
Technical Data
Color
White opaque
Temperature Range
- 40
o
F to + 165
o
F
Vacuum Rating
28" Hg.
Working Pressure
170 PSI @ 75
o
F; (11.7 b @ 25
o
C) 3:1 Safety Factor
Diameter Tolerances
+/- .005"
Base Resin Compliance
NSF61, Meets UL94HB
Durometer
95A
Weight
4 oz. (113.4g) / ft
Materials
Polymer
Ether-based, Polyurethane, UV stabilized
Model - F009G375-BK
Model - F009G375-BL
Model - F009G375-C
Model - F009G375-G
Model - F009G375-R
Model - F009G375-W
Model - F009G375-Y
DESCRIPTION
Model - F009G375-W
Features
Resistance
Kink and abrasion resistance
Temperature
Suitable for temperatures ranging from -40
o
to 165
o
F
Polymer
Ether-based Polyurethane that is UV stabilized. Provides many years service in harsh outdoor conditions.
Memory
May be stretched, bent or kinked and will immediately return to it's original dimensions.
