CTV9I1
CTV9I1
Pneumatic Timer, 5/2 way valve, (1 - 7) second timing range

Alternative Views:


Same day shipping for this item!
List Price $668.13

Quantity in Stock:199

Product Code: CTV07

Seals

Seal type:
Viton [Add $5.00]

Qty:
Description Specifications 3D Viewer/CAD

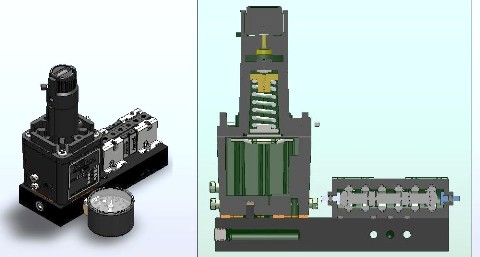

Pneumatic Timer Valve, Block Bleed with integrated 5/2 way valve; 1/8 NPT ports; 30% glass filled Noryl® composite body with anodized aluminum base; Stainless Steel Components
DESCRIPTION
Model - CTV9I1


Features


Connectivity
Used for pneumatic timing sequencing. Supply air and the timing signal are kept separate, allowing freedom of the 5/2 way valve to use an independent regulated air pressure

Resolution
Repeat accuracy within .25 of 1% of the set point


Adjuster
Analog, Turn Counting knob, 10 turns, 001 - 999

Noryl® Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments


Longevity
10 million cycles


Ports
1/8 NPT






Options



Seals

Viton
