3/2 way Roller limit valve; Normally closed; 30% glass filled Noryl® composite; small compact size.
Model - CV306V
|
Technical Data
|
|
|
|
|
|
|
|
Lubrication
|
None required
|
|
|
Compressed air; inert gasses
|
|
Operating Pressure
|
0 - 125 PSI (0.0 - 8.6)
|
|
|
-35 F (-37) to 150 (66)
|
|
Operating Force
|
0.30 lb (.136 kg)
|
|
Weight
|
1 oz. (.028 kg)
|
|
Materials
|
|
Plunger, Cartridge, Retainer
|
Nickel Plated Brass
|
|
Poppet, Orings
|
Viton
|
|
Roller
|
Nylon
|
|
Roller Lever
|
18 ga. 303 Stainless Steel
|
|
Body
|
Glass filled Noryl® Resin
|
|
Operation
|
|
Roller lever depressed
|
P to O (In to Out)
|
|
Roller lever released
|
O to EX (Out to Exhaust) Exhausts out the top of the plunger
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|

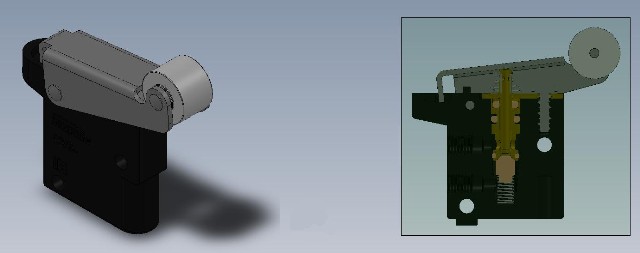

DESCRIPTION
Model - CV306V
|
Features
|
|
Seals
|
High flow Poppet style
|
|
Design
|
Compact to fit in tight areas
|
|
Noryl
® Resin
|
Suitable for applications requiring wide temperature swings or placement in harsh environments
|
|
Longevity
|
50 million cycles
|
|
Ports
|
10-32 porting on same side for easy piping, exhaust out top of the plunger
|
|
|
|
|
|
|
|
