3/2 way; One way Roller limit valve; Normally Open; 30% glass filled Noryl® composite; small compact size.
Model - CV307B
|
Technical Data |
|
|
|
|
|
|
|
Lubrication |
None required |
|
|
Compressed air; inert gasses |
|
Operating Pressure |
0 - 125 PSI (0.0 - 8.6) |
|
|
-35 F (-37) to 150 (66) |
|
Operating Force |
.75 lb (.340 kg) |
|
Weight |
1 oz. (.028 kg) |
|
Materials |
|
Plunger, Cartridge, Retainer |
Nickel Plated Brass |
|
Poppet, Orings |
Buna N |
|
Roller |
Nylon |
|
Roller Lever |
18 ga. 303 Stainless Steel |
|
Body |
Glass filled Noryl® Resin |
|
Operation |
|
Roller lever depressed |
O to EX (Out to Exhaust) Exhausts out the top of the plunger |
|
Roller lever released |
P to O (In to Out) |

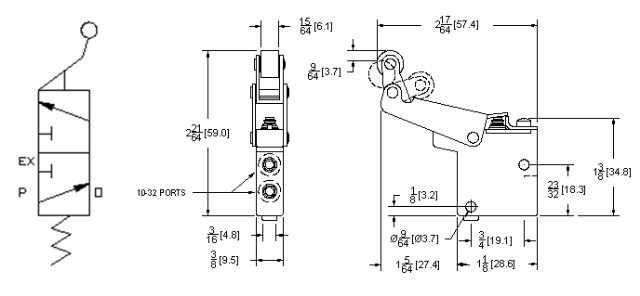

Model CV307B
Model CV307V
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
DESCRIPTION
Model - CV307B
|
Features |
|
Seals |
High flow Poppet style |
|
Design |
Compact to fit in tight areas |
|
Noryl® Resin |
Suitable for applications requiring wide temperature swings or placement in harsh environments |
|
Longevity |
50 million cycles |
|
Ports |
10-32 porting on same side for easy piping, exhaust out top of the plunger |
|
|
|
|
|
|
|
