CWV2KV

Home > Sensors / Pneumatic > Wisker Valve Sensor >

CWV2KV

Whisker valve kit includes the Whisker, .010 orifice, 10-32 fittings, 3/2 way valve and tubing.

Alternative Views:

Same day shipping for this item!

List Price $119.75

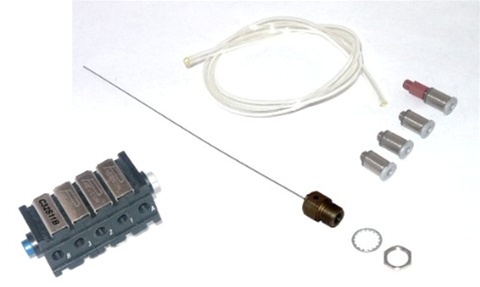

Package includes> 3/2 way valve, Whisker, Fittings, and Tubing

Quantity in Stock:11

Product Code: CWV03

Qty:

Description

Specifications

Whisker valve kit includes the Whisker, .010 orifice, 10-32 fittings, 3/2 way valve and tubing.

DESCRIPTION

Model - CWV2KV

Features
Whisker	302 tempered Stainless Steel
Body	Black or Straw anodized aluminum
Longevity	5 million cycles
Mounting	Operates in any position and may be mounted using 7/16 hole.
Orifice	.010 red sapphire jeweled orifice
Ports	10-32 UNF
Fittings	10-32 push to fit for 5/32" OD polyurethane tubing

Whats Included
2	10-32 UNF male x 5/32" OD tube elbows. Push to fit
3	10-32 UNF male x 5/32" OD tube straight. Push to fit
1	10-32 male to 10-32 female .010 jeweled orifice. Pneucon part CCK410A
1	CWV2 Whisker Valve.
2	Feet of 5/32" Clear Polyurethane Tubing. Pneucon part F009F156C
1	3/2 way N.O. or N.C valve. Pneucon part C32S11B
